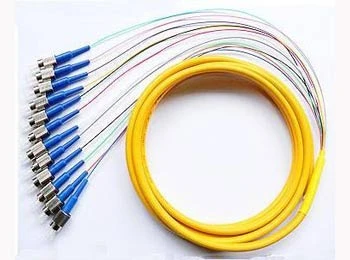

12cores FC bundle fiber optic pigtail
Description: Can separate multi-core cable (4 core, 6 core, 8 core, 12 core) fan-out( or bundle) with connectors,suitable for convenient indoor connectivity and distribution frames (ODF) intensivethe installation.
Feature: Ribbon fiber straightly separate into to single-core wiring pigtails. Mostly used in frame
connection, simple, convenient and economical
Easy to install, small size, large capacity.
Jumper types: 2.0mm, 0.9mm. Indicators PC : Insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
Fiber: 4 core 6 core 8 core, 10 core, 12 core. Fan out fiber have a special casing protection from twisting off or injury,
and good bending properties.
With FC / PC, FC / APC, SC / PC, SC / APC, ST / PC connectors
Specification: (for single mode)
|
||||||||||||||||||||||||||||||||||||||||||||
